Reassembling Your New Bike
Congrats!
Congratulations on your purchase of a new bicycle! The freedom and joy that comes with cycling is truly unparalleled, and there are many incredible adventures just around the corner, but first let's get this baby built!
Your new bike arrives from Bicycle Warehouse with most of the hard work already taken care of to make it as easy as possible for you to get out and riding those roads and trails. It's easy for experienced wrenchers and beginners alike. Just follow these simple steps:
Assembly Time
Level 1 - "Never-Ever"
Never assembled a bike and working with tools isn't your forte'
Assembly Time 60-80 minutes
Level 2 - "I'm Handy"
Never assembled a bike yet you are pretty mechanically handy.
Assembly Time 40-50 minutes
Level 3 - "DIY Bike Mechanic"
Never fully assembled a bike but have done a little bike tuning
Assembly Time 30-40 minutes
Level 4 - "Certified"
You’re a skilled bicycle mechanic
Time yourself, I bet you can assemble this bike in less than 10 minutes
Tools Needed
- 4, 5mm Hex Allen Keys*
- 15mm Pedal Wrench or 6mm Allen *
- Bike Grease*
- Bicycle Tire Pump*
- #2 Phillips Head and Flathead Screwdriver *
- Box Cutter or Strong Scissors
Click on the logo below for brand-specific videos on how to get your bike rolling.

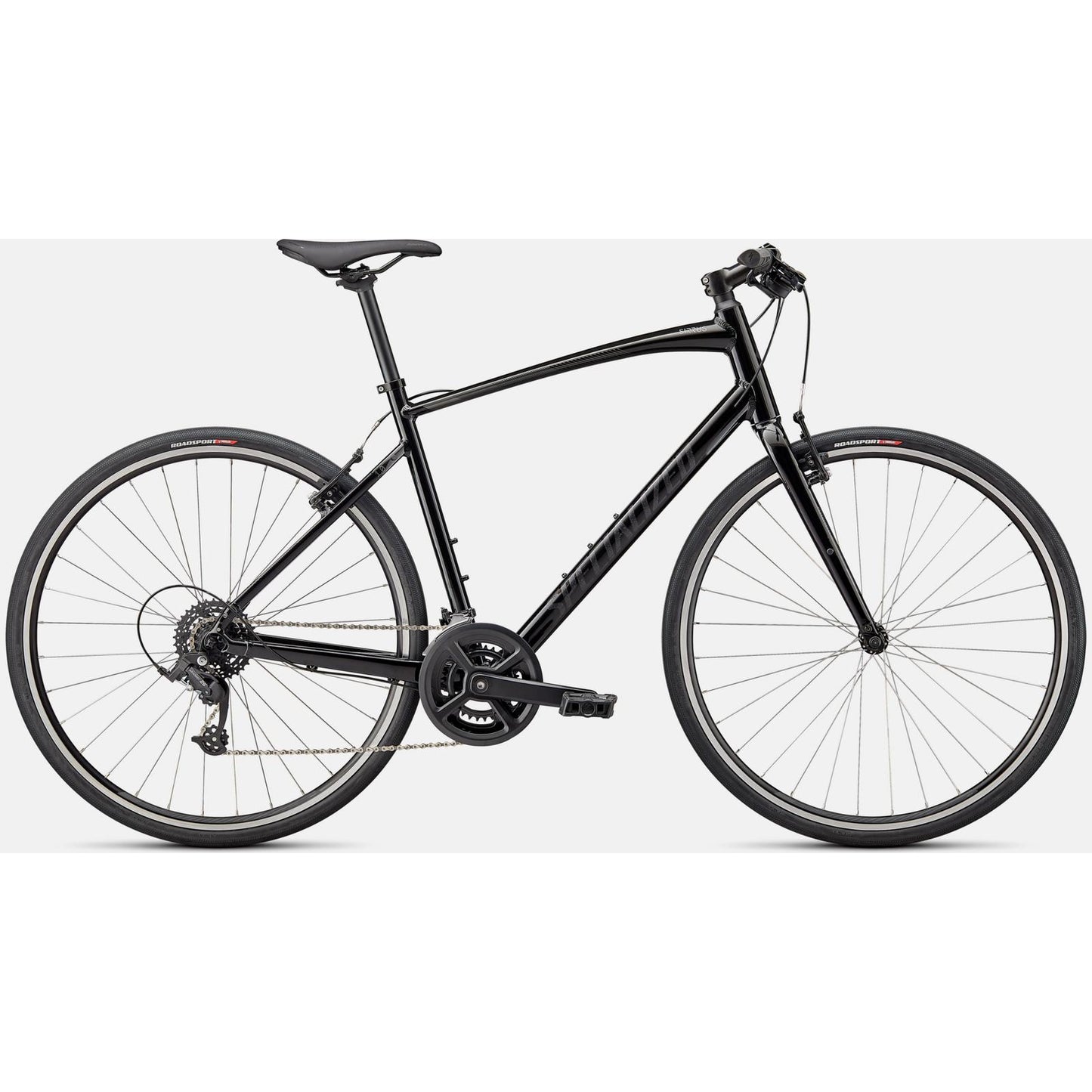

Introducing the Specialized Sirrus 1.0 Fitness Road Bike – your trusty sidekick on a thrilling adventure towards fitness greatness! Life's a whirlwind, but fear not, the Sirrus is here to ride alongside you through every twist and turn. Designed to keep up with your fast-paced lifestyle, this bike is a speed demon with a heart of gold. Whether you're dashing to meetings, meeting up with friends, or conquering your fitness ambitions, Sirrus has your back – or rather, your wheels. Sirrus is ready to join you on this epic journey – turning your daily grind into a thrilling escapade filled with FUN, fitness, freedom and fabulous memories!
Features:
- Lightweight A1 Alloy frame with clean internal cable routing delivers a bike that is 1.1lb (.5kg) lighter than previous version.
- Upright position with Body Geometry touchpoints for comfort and control.
- Reflective graphics on frame and tires for maximum visibility.
Specifications
|
Frame |
Specialized A1 Premium Aluminum, Fitness Geometry, Butted tubing, Internal Cable Routing, V-Brake, Quick-Release, Plug + Play rack/fender mounts |
|
Seat Binder |
Bolt-type, 31.8mm |
|
Fork |
Hi-Ten steel, V-Brake, Plug + Play fender mounts, low rider rack mounts, quick-release |
|
Handlebars |
Double-butted alloy, 5-degree backsweep, 25.4mm |
|
Stem |
Specialized Flowset, integrated, 3D-forged alloy, 4-bolt, 12-degree rise, 31.8mm clamp |
|
Tape |
Specialized Body Geometry XCT, lock-on |
|
Saddle |
Bridge Sport, Steel rails, 155/143mm |
|
SeatPost |
Alloy, 12mm offset, 2-bolt clamp, 27.2mm |
|
Front Brake |
V-brake, linear pull |
|
Rear Brake |
V-brake, linear pull |
|
Shift Levers |
microSHIFT TS39 Trigger shift, 7-speed |
|
Front Derailleur |
Shimano Tourney FD-TY710 |
|
Rear Derailleur |
microSHIFT RD-M26S, 7-speed |
|
Cassette |
SunRace, 7-Speed, 11-34t |
|
Chainrings |
46/30T w/ chainguard |
|
Bottom Bracket |
BSA, square-taper, 68mm |
|
Chain |
KMC X8 w/ Missing Link™ |
|
Crankset |
Forged aluminum arms, 3-piece, 46/30T |
|
Rims |
700C rim brake, double-wall alloy, 22mm depth, 21mm internal width, rim brake |
|
Front Hub |
Alloy, loose ball bearing, quick-release, 32h |
|
Rear Hub |
Alloy, loose ball bearings, quick-release, 7-speed freehub, 32h |
|
Front Tire |
RoadSport, Wire bead, Blackbelt/Endurant Casing, 700x32c |
|
Rear Tire |
RoadSport, Wire bead, Blackbelt/Endurant Casing, 700x32c |
|
Spokes |
Stainless, 14g |
|
Inner Tubes |
Schrader valve, 40mm |
|
Pedals |
Specialized Body Geometry Fitness, platform, plastic |
Geometry
| XXS | XS | S | M | L | XL | |
|---|---|---|---|---|---|---|
| Crank Length | 170mm | 170mm | 170mm | 170mm | 175mm | 175mm |
| Stem Length | 60mm | 60mm | 75mm | 75mm | 90mm | 110mm |
| Handlebar Width | 580mm | 580mm | 600mm | 600mm | 620mm | 620mm |
| Seatpost Length | 300mm | 300mm | 350mm | 350mm | 400mm | 400mm |
| Saddle Width | 155mm | 155mm | 155mm | 143mm | 143mm | 143mm |
| Stack | 536mm | 555mm | 562mm | 593mm | 608mm | 632mm |
| Reach | 373mm | 388mm | 393mm | 398mm | 402mm | 414mm |
| Head-Tube Length | 121mm | 139mm | 147mm | 175mm | 191mm | 217mm |
| Head-Tube Angle | 69.5° | 70° | 70° | 71° | 71° | 71° |
| B-B Height | 278mm | 278mm | 278mm | 278mm | 278mm | 278mm |
| B-B Drop | 70mm | 70mm | 70mm | 70mm | 70mm | 70mm |
| Trail | 75mm | 72mm | 72mm | 65mm | 65mm | 65mm |
| Fork Length (full) | 395mm | 395mm | 395mm | 395mm | 395mm | 395mm |
| Fork Rake/Offset | 51mm | 51mm | 51mm | 51mm | 51mm | 51mm |
| Front-Center | 605mm | 622mm | 630mm | 635mm | 645mm | 665mm |
| Chain-Stay Length | 440mm | 440mm | 440mm | 440mm | 440mm | 440mm |
| Wheelbase | 1036mm | 1053mm | 1061mm | 1066mm | 1075mm | 1096mm |
| Top-Tube Length (horizontal) | 531mm | 552mm | 559mm | 573mm | 582mm | 601mm |
| Bike Stand-Over Height | 692mm | 715mm | 745mm | 775mm | 805mm | 827mm |
| Seat-Tube Length | 360mm | 395mm | 440mm | 470mm | 510mm | 530mm |
| Seat-Tube Angle | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
