Reassembling Your New Bike
Congrats!
Congratulations on your purchase of a new bicycle! The freedom and joy that comes with cycling is truly unparalleled, and there are many incredible adventures just around the corner, but first let's get this baby built!
Your new bike arrives from Bicycle Warehouse with most of the hard work already taken care of to make it as easy as possible for you to get out and riding those roads and trails. It's easy for experienced wrenchers and beginners alike. Just follow these simple steps:
Assembly Time
Level 1 - "Never-Ever"
Never assembled a bike and working with tools isn't your forte'
Assembly Time 60-80 minutes
Level 2 - "I'm Handy"
Never assembled a bike yet you are pretty mechanically handy.
Assembly Time 40-50 minutes
Level 3 - "DIY Bike Mechanic"
Never fully assembled a bike but have done a little bike tuning
Assembly Time 30-40 minutes
Level 4 - "Certified"
You’re a skilled bicycle mechanic
Time yourself, I bet you can assemble this bike in less than 10 minutes
Tools Needed
- 4, 5mm Hex Allen Keys*
- 15mm Pedal Wrench or 6mm Allen *
- Bike Grease*
- Bicycle Tire Pump*
- #2 Phillips Head and Flathead Screwdriver *
- Box Cutter or Strong Scissors
Click on the logo below for brand-specific videos on how to get your bike rolling.

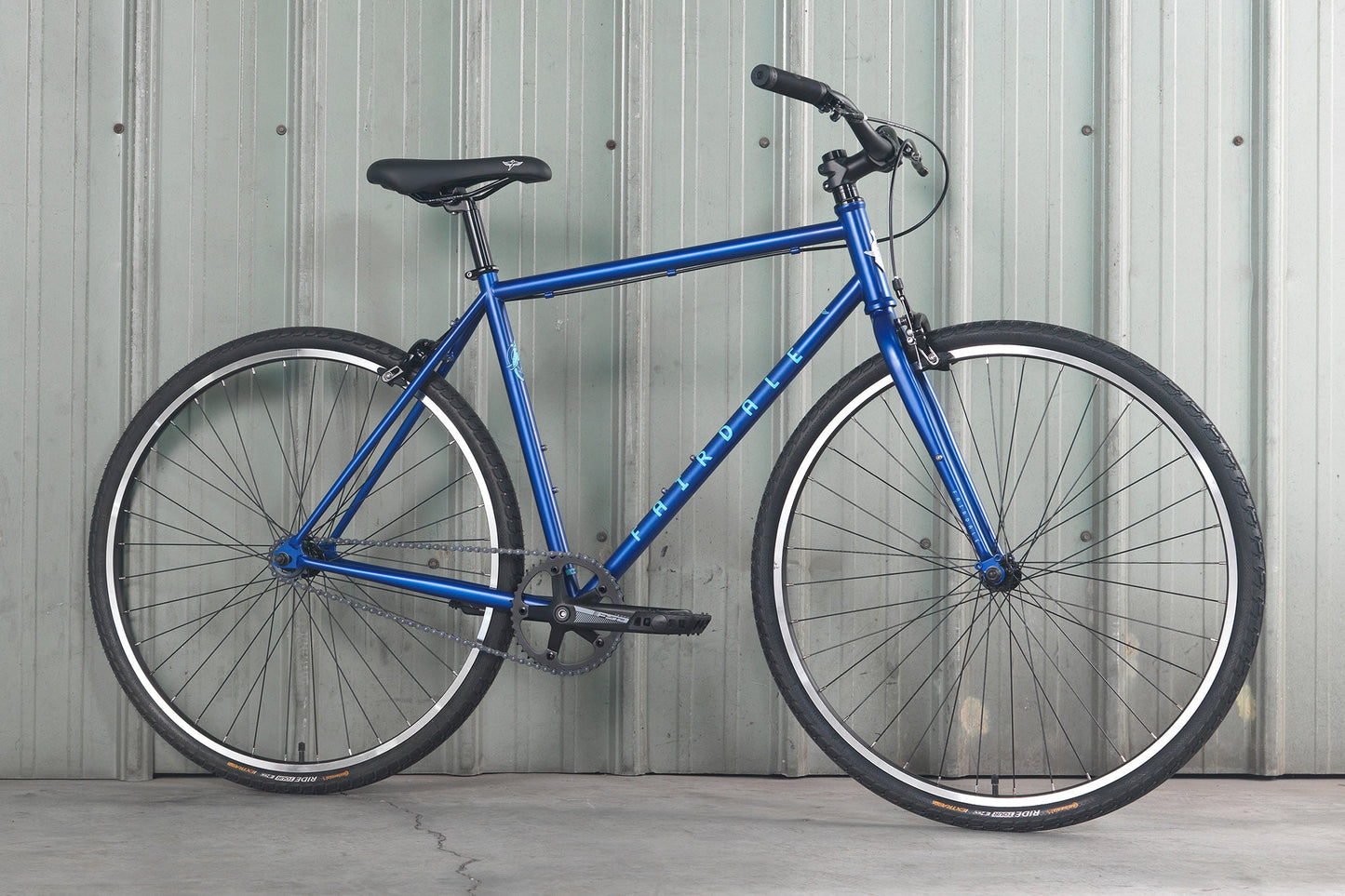

The Express is a bike that is not caught up in the bicycle industry's chaotic technological race. The Express follows Fairdale's mantra, "Keepin' it simple keeps it fun."
And, it doesn't get much more simple than MTB riser style handlebars on a tough yet comfortable single-speed steel frame. Wide reliable tires and FSA cranks round out the durable build that you'll enjoy riding long after the next cycling fad has come and gone.
Available in Matte Royal Blue in Small/Medium and Medium/Large sizes.
Sizing
Small/Medium: 5'2" - 5'8" height
Medium/Large: 5'6 - 6'0" height
Sizing is approximate. Please consult with your local bike shop to assist with fit.
Specifications
Frame: 1020 Steel, with Rack and Fender mounts
Fork: 1020 Steel, 1 1/8”
Handlebar: Fairdale Archer v3, Aluminum
Stem: 70mm, Forged Aluminum
Headset: FSA, Sealed Integrated, 45º/45º
Brake Lever: Aluminum, Short Pull
Brake: Aluminum, Dual Pivot, w/ Quick Release
Grips: Fairdale Swan
Saddle: Fairdale Logo Saddle
Seat Post: Micro adjust, 27.2mm
Seat Clamp: Fairdale, 30mm
Cranks: FSA Tempo 1x (S/M=170mm, M/L=175mm)
Chainwheel: 42t
BB Parts: FSA
Pedals: Odyssey Twisted PC
Rims: 700c, 36-Hole, Schrader Valve, Aluminum
Front Hub: 36H 3/8” Axle, Aluminum Shell, Looseball
Rear Hub: 36H 3/8” Axle, Aluminum Shell, Looseball
Tires: Continental Tour Ride, 700c x 42mm
Chain: KMC S1
Driver: 16t Freewheel
Geometry
| Size | S/M (52cm) | M/L (56cm) |
| Top Tube (Effective) | 537mm |
565mm |
| Top Tube (Actual) | 517mm |
546mm |
| Seat Tube (BB Center to TT Top) | 475mm |
525mm |
| Seat Tube (BB Center to TT Center) |
439mm |
489mm |
| Seat Tube Angle | 73° | 73° |
| Head Tube Length | 130mm |
155mm |
| Head Tube Angle | 71° | 72.5° |
| Chain Stay Length | 430mm |
430mm |
| Wheelbase | 1018mm |
1031mm |
| Standover | 770mm |
809mm |
| Stack | 554mm |
584mm |
| Reach | 368mm |
387mm |
| Fork Length | 404mm |
404mm |
| Fork Offset | 50mm |
50mm |
| BB Drop | 68mm |
68mm |
| Dropout Spacing | 130mm |
130mm |
| BB Type | English 68mm |
English 68mm |
| Seat Post | 27.2mm | 27.2mm |
| Seat Clamp | 30mm | 30mm |
| Approx. Max Tire Width | 42mm |
42mm |
| Wheel Size | 700c | 700c |
