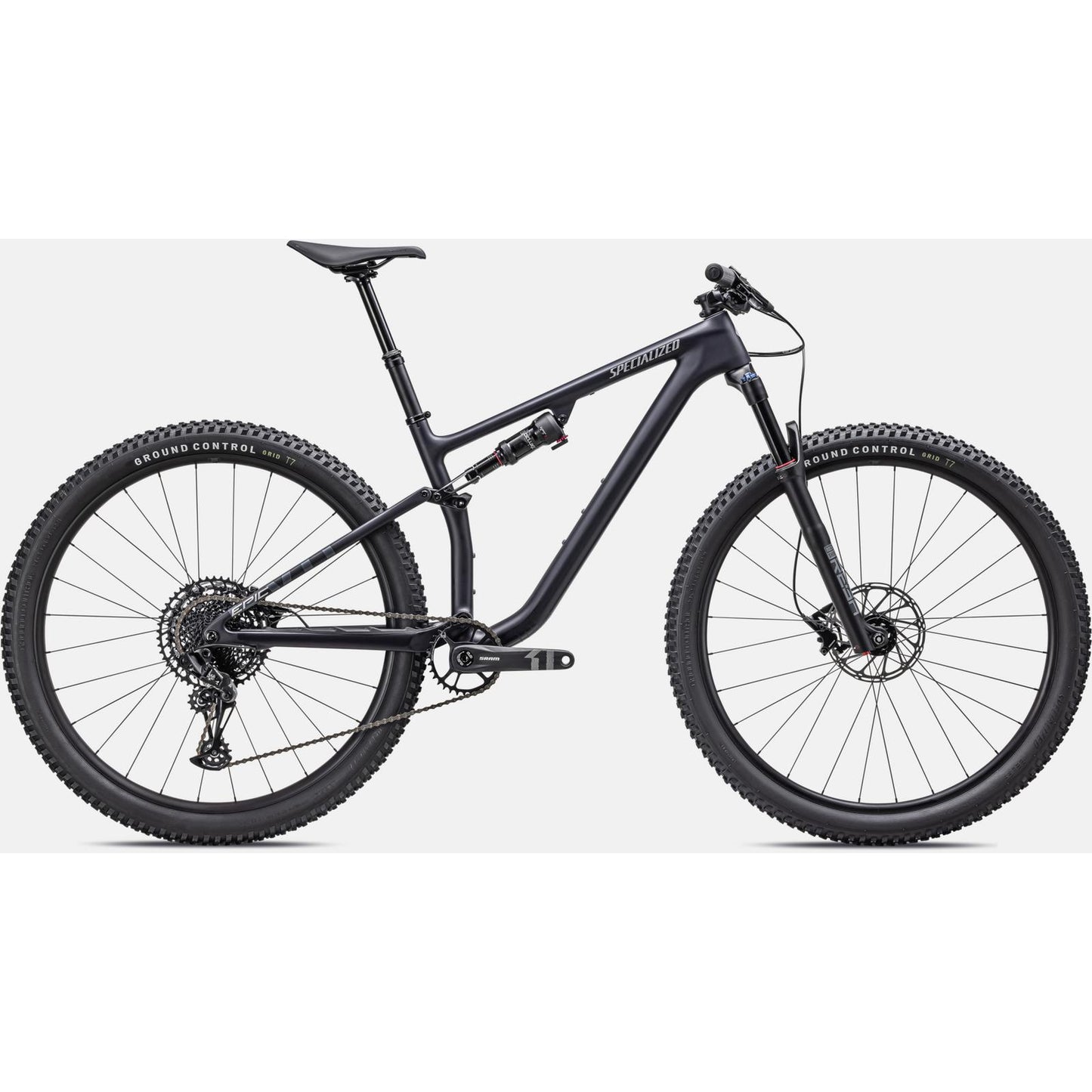

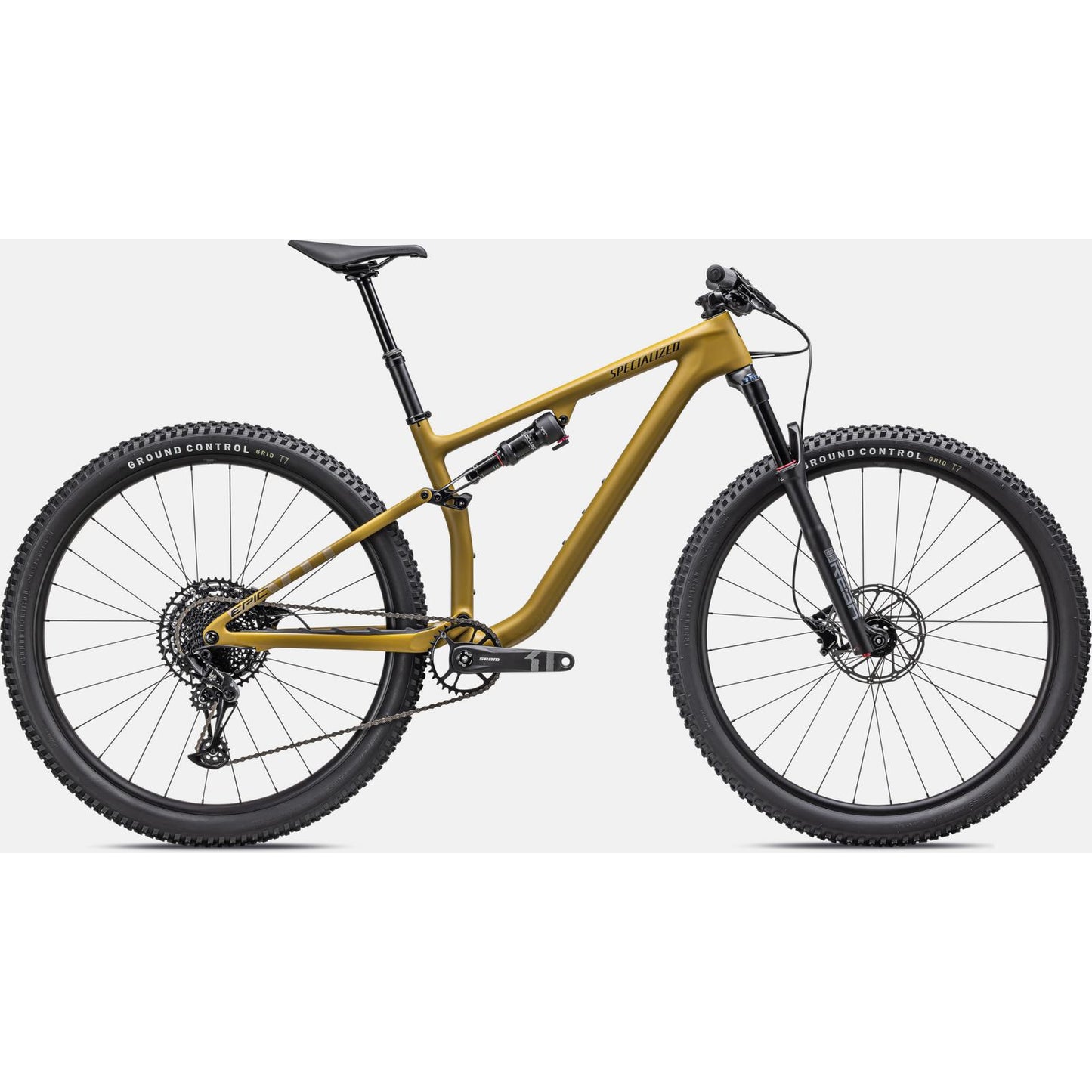

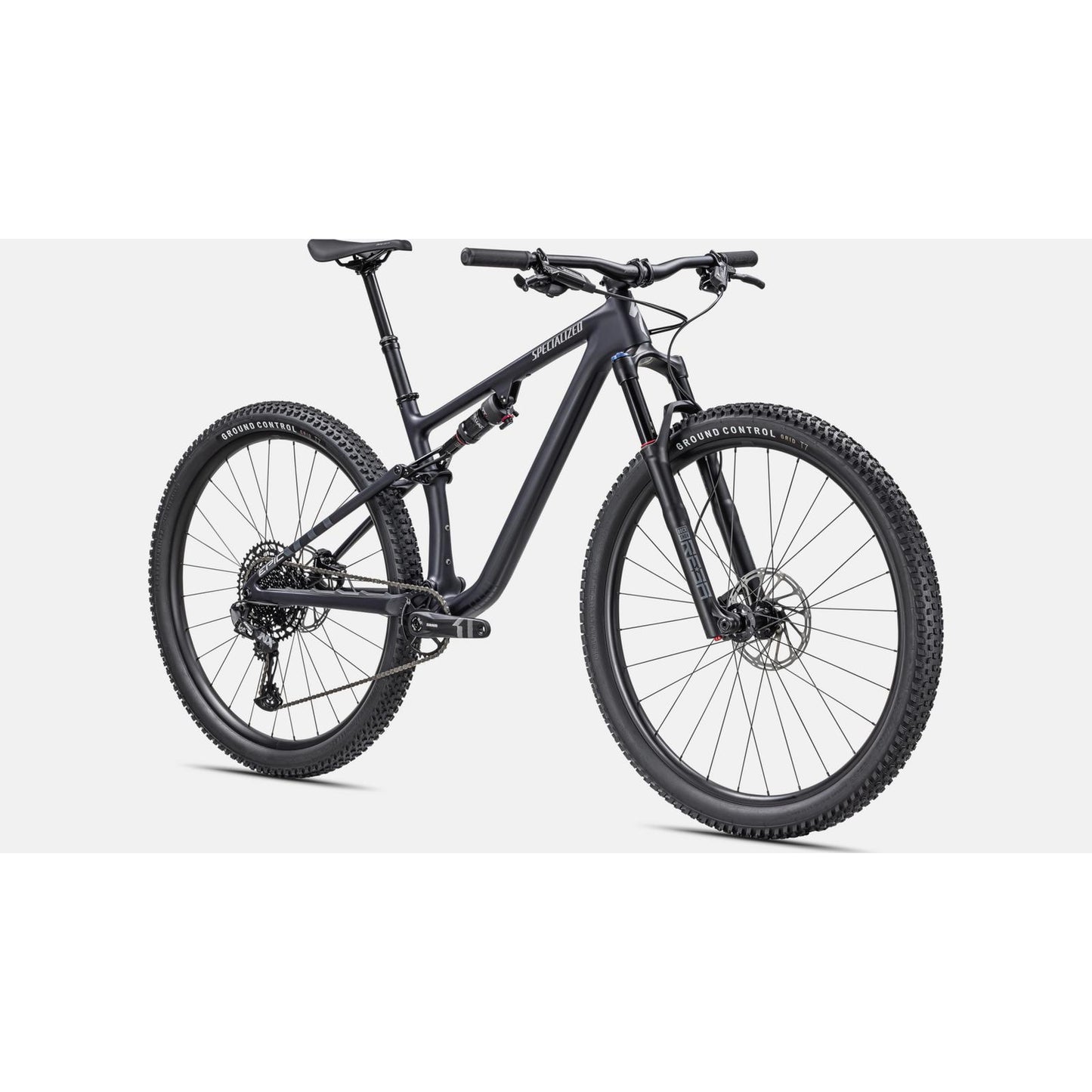

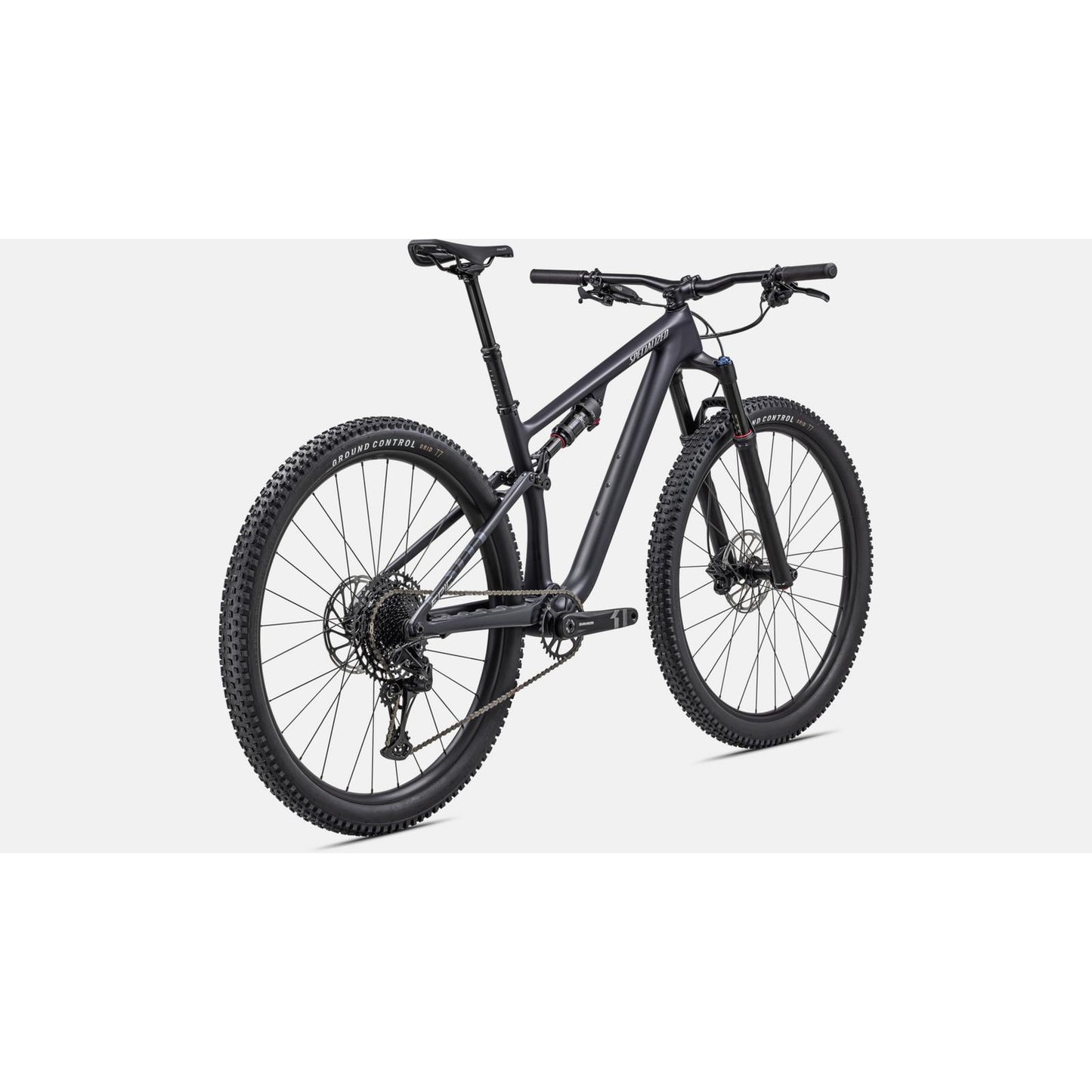

The Epic Evo Full Suspension 29" Mountain Bike 2023 - the bike that knows cross country is more than just a race, it's an adventure! While it's no stranger to number plates, it's equally at home conquering the wild trails and claiming ridgelines as its own finish lines!
With a slight increase in suspension travel up front and at the back, the Epic EVO has been carefully designed to give you an exhilarating experience from the moment you hit the singletrack. Specialized has gone above and beyond to ensure you'll be shouting 'Whoa!' in excitement as you take on every twist and turn.
Efficiency is the name of the game, and the EVO doesn't disappoint. Meticulously engineered with Rx XC shock tune and clever suspension kinematics, you'll squeeze every ounce of performance out of this bike. It's got increased anti-squat characteristics for top-notch pedaling efficiency without compromising on its trail-taming capabilities.
The Progressive XC Geometry takes the Epic EVO to new heights of capability. And if that's not enough, we've thrown in a nifty flip chip-equipped rear end, allowing you to fine-tune the headtube angle and bottom bracket height to match your riding style perfectly.
But that's not all - the Epic EVO is built with a flyweight FACT 11m carbon frame and top-of-the-line SRAM components and RockShox suspension, making it a speed demon that'll make miles vanish in the blink of an eye.
So buckle up, get ready to redefine your cross country adventure, and embrace the epicness of the Epic Evo Full Suspension Mountain Bike 2023 - the ultimate ride for thrill-seekers and trail conquerors!
Features:
- Flip It To Rip It: Tune the ride of the Epic EVO’s FACT 11m carbon frame to match your preferred handling characteristics with flip-chip simplicity that allows riders to reduce the EVO’s headtube angle by half a degree while lowering bottom bracket height by 10 millimeters.
- The Reba RL doles out travel with a steady hand courtesy of RockShox's Motion Control damper, while SoloAir adjustability makes dialing in suspension performance a breeze.
- SRAM’s NX Eagle drivetrain is the benchmark for affordable high performance, delivering crisp shifting and a massive 450% gear range.
Specifications
Chainrings |
32T |
Bottom Bracket |
SRAM DUB, BSA 73mm, Threaded |
Cassette |
SRAM NX Eagle, 12-speed, 11-50t |
Rear Derailleur |
SRAM NX Eagle, 12-speed |
Shift Levers |
SRAM NX Eagle, trigger, 12-speed |
Chain |
SRAM SX Eagle, 12-speed |
Crankset |
SRAM X1000 Eagle, DUB, 170/175mm 32T |
Rear Hub |
Specialized alloy, sealed cartridge bearings, 6-bolt, 148mmx12mm thru-axle, 28h |
Rims |
Specialized Alloy, Tubeless Ready, 29mm internal width, 28h |
Front Tire |
Specialized Ground Control, GRID Casing, T7 Compound, 29x2.35 |
Rear Tire |
Specialized Ground Control, GRID Casing, T7 Compound, 29x2.35 |
Front Hub |
Specialized alloy, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 28h |
Inner Tubes |
Standard, Presta valve |
Saddle |
Body Geometry Power Sport, steel rails |
Handlebars |
Specialized Alloy, 20mm rise, 31.8mm, 760mm wide |
Tape |
Specialized Trail Grips |
Stem |
Specialized, 3D-forged alloy, 4-bolt, 7-degree rise |
SeatPost |
TranzX Dropper, 30.9mm, XS-SM: 100mm, M: 125mm, L-XL: 150mm |
Frame |
FACT 11m Full Carbon, Progressive XC Geometry, Rider-First Engineeredâ„¢, threaded BB, 12x148mm rear spacing, internal cable routing, 110mm of travel |
Seat Binder |
Specialized Alloy, 34.9mm |
Fork |
RockShox Reba RL, Motion Control damper, Solo Air, 42mm offset, 15x110mm thru-axle, 120mm of travel |
Rear Shock |
RockShox DELUXE Select+, Rx XC Tune, Two Position, Rebound Adjust, 190x40mm |
Front Brake |
SRAM Level T hydraulic disc, 2-Piston Caliper, 180mm rotor |
Rear Brake |
SRAM Level T hydraulic disc, 2-Piston Caliper, 180mm rotor |
Spokes |
Stainless, 14g |
Geometry
XSmall | Small | Medium | Large | XLarge | |
---|---|---|---|---|---|
Crank Length | 165mm | 170mm | 175mm | 175mm | 175mm |
Handlebar Width | 760mm | 760mm | 760mm | 760mm | 760mm |
Stem Length | 60mm | 60mm | 60mm | 60mm | 60mm |
Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm |
Seatpost Length | 100mm | 125mm | 125mm | 150mm | 150mm |
Stack | 603mm | 593mm | 597mm | 611mm | 629mm |
Reach | 380mm | 406mm | 436mm | 460mm | 485mm |
Head Tube Length | 95mm | 95mm | 100mm | 115mm | 135mm |
Head Tube Angle | 66.5° | 66.5° | 66.5° | 66.5° | 66.5° |
BB Height | 326mm | 336mm | 336mm | 336mm | 336mm |
BB Drop | 46mm | 36mm | 36mm | 36mm | 36mm |
Trail | 114mm | 114mm | 114mm | 114mm | 114mm |
Fork Length, Full | 530mm | 530mm | 530mm | 530mm | 530mm |
Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm | 44mm |
Front Center | 672mm | 697mm | 729mm | 759mm | 792mm |
Chainstay Length | 438mm | 438mm | 438mm | 438mm | 438mm |
Wheelbase | 1106mm | 1132mm | 1164mm | 1194mm | 1227mm |
Bike Standover Height | 760mm | 779mm | 781mm | 793mm | 804mm |
Seat Tube Length | 375mm | 400mm | 430mm | 470mm | 520mm |
Seat Tube Angle | 75.5° | 74.8° | 74.5° | 74.5° | 74.5° |
Top Tube Length, Horizontal | 536mm | 567mm | 602mm | 629mm | 659mm |
