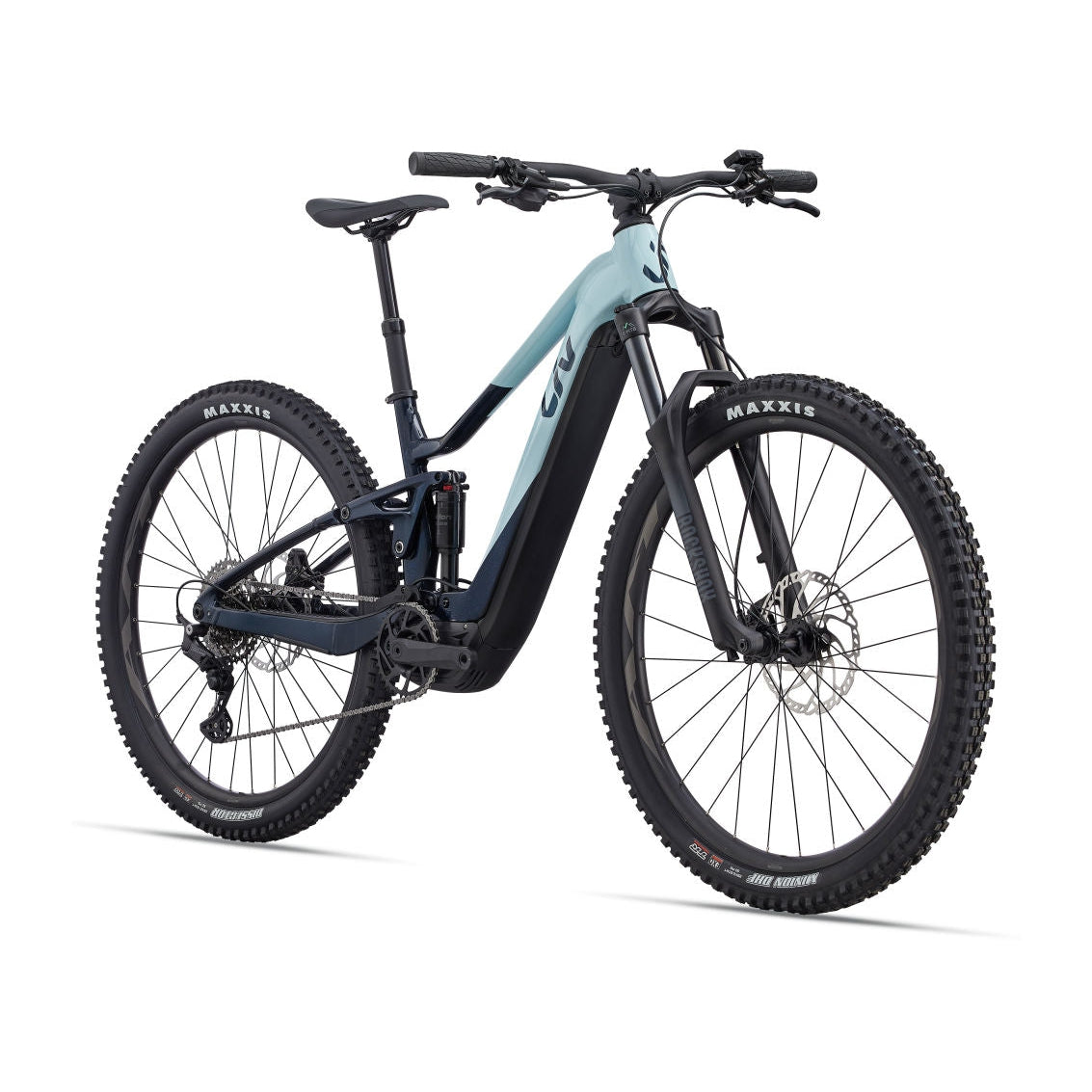

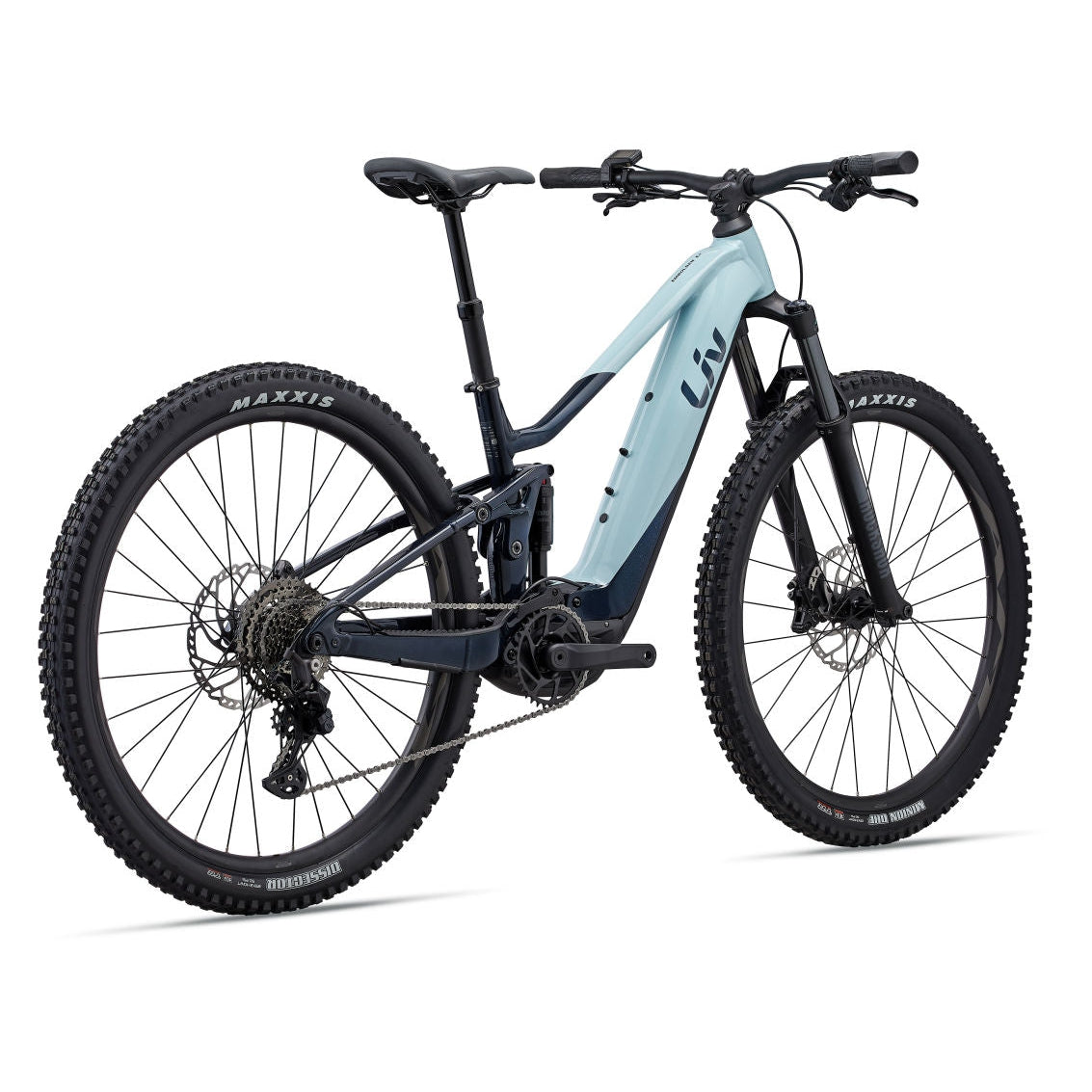

Are you ready to take your mountain biking experience to the next level? The Embolden E+ 1 29er Full Suspension Mountain Bike is your ultimate weapon to shred demanding trails, breeze through climbs, and conquer obstacles with confidence. Nothing is off-limits with this powerful and versatile electric bike.
Get ready for an exhilarating ride with the high-performing Embolden E+. With a maximum range of 180km, loads of travel (140mm front, 125mm rear), and a powerful motor (75Nm of torque), epic mountain biking, trekking, and touring adventures are now well within your capabilities.
This bike is not only capable but also versatile for multi-usage. The Embolden E+ is equipped with a 140mm front/125mm rear suspension, integrated kickstand, fender mounts, and carrier compatibility, making it ready to tackle challenging technical trails and tick off your bucket list of touring and trekking adventures.
But that's not all. The Embolden E+ brings head-turning wow factor to the trails with its premium and integrated design. With internally routed cables, smooth and simple frame lines, and attractive color and graphics, this E-bike is a beauty to behold. Plus, the lower standover height makes it easy to get on and off.
So, what are you waiting for? Get ready to feel the rush and explore the world in a whole new way with the Embolden E+ 1 Full Suspension Mountain Bike.
Â
Capable and Fun
The high-performing Embolden E+ provides an exhilarating ride. It has a maximum range of 180km, loads of travel (140mm front, 125mm rear), and a powerful motor (75Nm of torque). Epic mountain biking, trekking, and touring adventures are now well within your capabilities.
Versatile for Multi-Usage
The Embolden E+ is your new secret weapon. With its 140mm front/125mm rear suspension, integrated kickstand, fender mounts, and carrier compatibility, this E-bike is ready to tackle challenging technical trails and tick off your bucket list of touring and trekking adventures.
Premium, Integrated Design
This E-bike brings head-turning wow factor to the trails thanks to its internally routed cables, smooth and simple frame lines, and attractive color and graphics. Additionally, the lower standover height makes it easy to get on and off.
Â
Range
How far can I expect to ride on a single battery charge?
The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.
The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.
ENERGYPAK 625 / SYNCDRIVE SPORT
Range
- Extreme: 37 miles
- Good: 68 miles
- Ideal: 118 miles
Â
Specifications
|
Motor |
SyncDrive Sport2, 75Nm, powered by Yamaha |
|
Controller |
RideControl Dash |
|
Display |
RideControl Dash, full color lcd screen |
|
Battery |
EnergyPak Smart 625EnergyPak Plus 250Wh range extender compatible |
|
Sizes |
XS, S, M, L, (XS: 27.5" / S, M, L: 29") |
|
Colors |
1 color |
|
Frame |
ALUXX SL-grade aluminum, 125mm travel FlexPoint suspension system, 148x12 rear axle, Universal Derrailleur hanger, 184x44 shock, 1.5~1.8" headset |
|
Fork |
RockShox 35 Silver, 140mm, tapered steerer, 110x15 thru-axle |
|
Shock |
SR Suntour Raidon R, 190x45mm, custom tuned |
|
Handlebar |
Giant Connect TR Riser 31.8x750mm (XS-S), 780mm (M-L) |
|
Grips |
Liv Tactal Pro Single Lock-On Grips |
|
Stem |
Giant Contact |
|
Seatpost |
Giant Contact Switch, dropper, 30,9mm (XS: 100/ S:125/ M:150/ L:170) |
|
Saddle |
Liv sylvia E |
|
Pedals |
Aluminum Platform |
|
Shifters |
Shimano Deore LinkGlide |
|
Front Derailleur |
MRP HD2 co-moulded chain guide |
|
Rear Derailleur |
Shimano Deore LinkGlide, 10-speed |
|
Brakes |
Tektro HD-M750 Orion, 4-piston, hydraulic disc, 203mm |
|
Brake Levers |
Tektro HD-M750 |
|
Cassette |
Shimano CS-LG400-10, 11-43T, 10-Speed LinkGlide |
|
Chain |
Shimano, LinkGlide, CN-LG500 |
|
Crankset |
FSA Comet E-Bike crank arm setFSA MegaTooth Direct-mount 1X steel 36T |
|
Bottom Bracket |
n/a |
|
Rims |
Giant AM 27.5" (XS), 29"(S, M, L), Tubeless ready, 30mm inner width |
|
Hubs |
Giant eTracker Boost, [F] 110x15 [R] 148x12mm |
|
Spokes |
Stainless Steel |
|
Tires |
Maxxis Minion DHF 27x2.5"(XS), 29X2.50"(S, M, L) Foldable, TLR, EXO, 60TPI [F]Maxxis Dissector 27.5x2.4"(XS), 29X2.40"(S, M, L) Foldable WT, TLR, EXO, 60TPI [R] |
|
Extras |
- |
|
Lighting |
- |
|
Lock |
Torx 25 Battery Lock with built-in Torque limiter |
|
Carrier |
- |
|
Weight |
The most accurate way to determine any bike’s weight is to have your local Bicycle Warehouse dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
Geometry
| Â | Â | XS | S | M | L |
|---|---|---|---|---|---|
| A | SEAT TUBE LENGTHÂ (inch) | 15 | 15.6 | 16.7 | 17.9 |
| B | SEAT TUBE ANGLE | 77.0° | 76.5° | 76.0° | 76.0° |
| C | TOP TUBE LENGTHÂ (inch) | 22.2 | 22.6 | 23.4 | 24.2 |
| D | HEAD TUBE LENGTHÂ (inch) | 4.1 | 4.1 | 4.5 | 4.9 |
| E | HEAD TUBE ANGLE | 66.0° | 66.0° | 66.0° | 66.0° |
| F | FORK RAKEÂ (inch) | 1.7 | 1.7 | 1.7 | 1.7 |
| G | TRAILÂ (inch) | 4.8 | 4.8 | 4.8 | 4.8 |
| H | WHEELBASEÂ (inch) | 47.3 | 47.2 | 47.8 | 48.7 |
| I | CHAIN STAY LENGTHÂ (inch) | 18.4 | 18.4 | 18.4 | 18.4 |
| J | BOTTOM BRACKET DROPÂ (inch) | 0.8 | 1.6 | 1.6 | 1.6 |
| K | STACKÂ (inch) | 23.7 | 24.4 | 24.8 | 25.2 |
| L | REACHÂ (inch) | 16.8 | 16.8 | 17.2 | 17.9 |
| M | STAND OVER HEIGHTÂ (inch) | 27.2 | 28 | 28.9 | 29.9 |
| N | HANDLEBAR WIDTHÂ (inch) | 29.5 | 29.5 | 30.7 | 30.7 |
| O | STEM LENGTHÂ (inch) | 1.6 | 1.6 | 2 | 2.4 |
| P | CRANK LENGTHÂ (inch) | 6.5 | 6.5 | 6.5 | 6.5 |
| Q | WHEEL SIZE | 27.5" | 29" | 29" | 29" |
